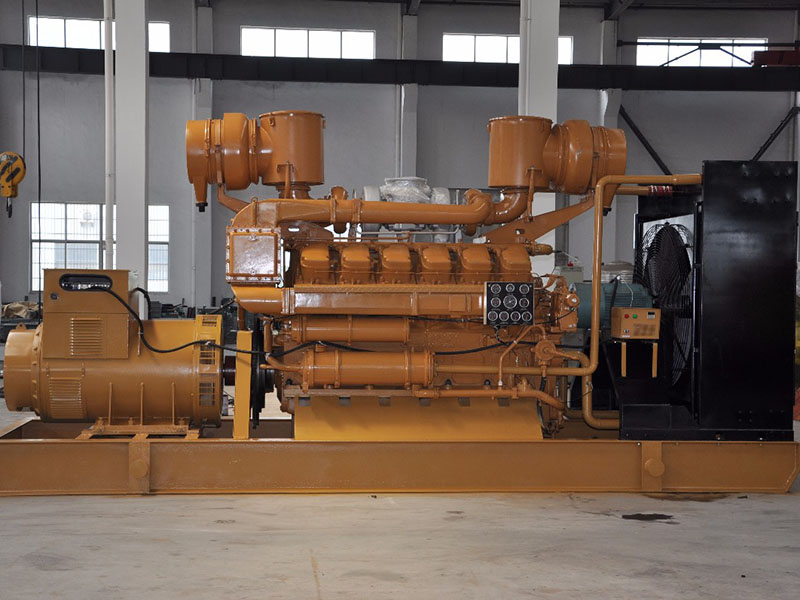

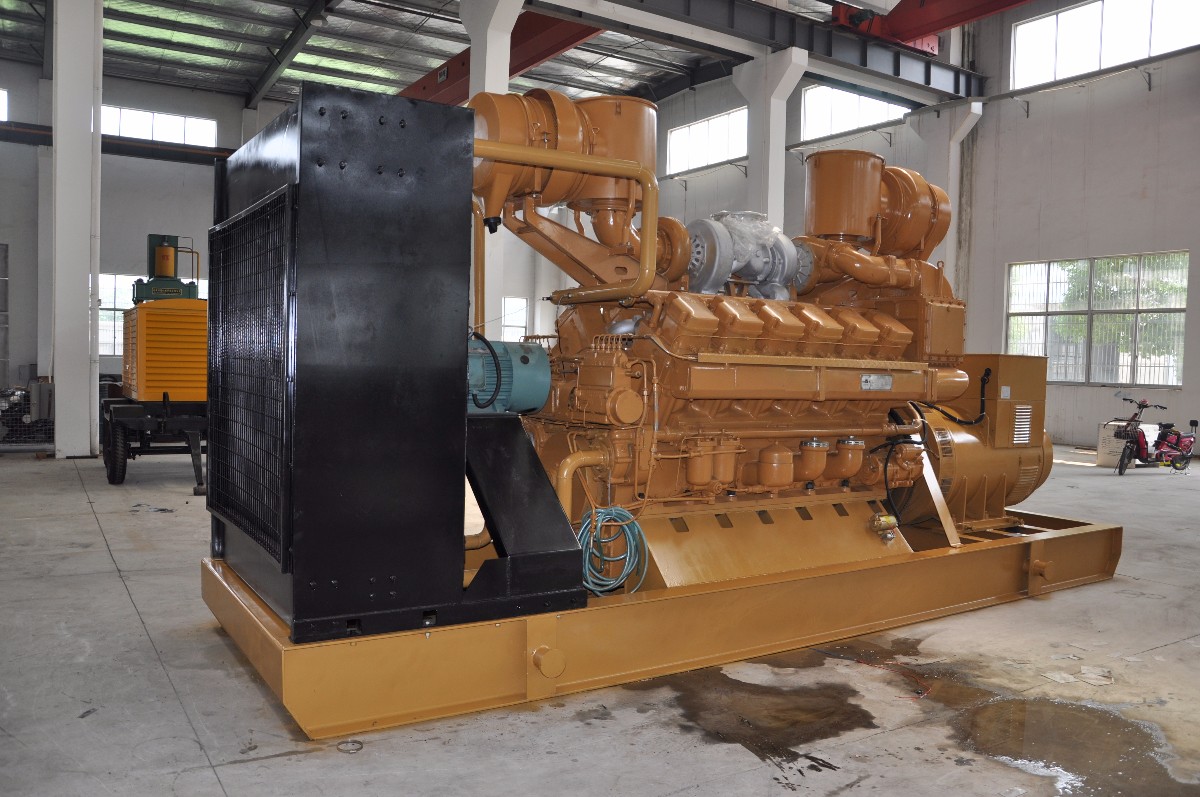

济柴石油1000KW柴油发电机组
济柴柴油机出自石油部企业济南柴油机股份有限公司,该系列用途广泛、性能优良的高速大功率柴油发电机组,产品荣获“国优金质奖”“全国用户满意产品称号”等。该发电机组产品经过多年的研制、开发,并且不断地吸收现代内燃机领域中卓有成效的科技成果,具备技术经济指示先进、结构紧凑、易于操作,维修方便,能适应各种恶环境条件下作业等特点。 JiChai diesel engine from the oil company jinan diesel engine co., LTD., the series is widely used, good performance of high speed high-power diesel generating sets, product won the "combined exposition" title of "national customer satisfaction product" and so on. This generator set of products after years of research, development, and continuously absorb the fruitful achievements in the field of modern internal combustion engine, with advanced technical indicators, compact structure, easy operation, convenient maintenance, can adapt to all kinds of bad environment under the condition of operation, etc. |
机组型号 | 输出功率KW | 输出功率KVA | 电流A | 柴油机型号 | 缸数 | 缸径*行程mm | 润滑油容量L | 油耗g/kw.g | 机组外形尺寸L×W×H | 机组重量kg |
FM20GF | 20 | 25 | 36 | K4100D | 4 | 100*115 | 10 | 238 | 1600*800*1200 | 550 |
FM24GF | 24 | 30 | 43.2 | K4100D | 4 | 100*115 | 10 | 238 | 1600*800*1200 | 550 |
FM30GF | 30 | 37.5 | 54 | K4100D | 4 | 100*115 | 10 | 238 | 1600*800*1200 | 550 |
FM40GF | 40 | 50 | 72 | K4100ZD | 4 | 100*115 | 10 | 238 | 1700*800*1350 | 650 |
FM50GF | 50 | 62.5 | 90 | ZH4105ZD | 4 | 105*115 | 12 | 238 | 1800*800*1400 | 800 |
FM75GF | 75 | 93.75 | 135 | R6105ZD | 6 | 105*115 | 15 | 238 | 2100*850*1500 | 1000 |
FM100GF | 100 | 125 | 180 | R6105AZLD | 6 | 105*115 | 15 | 238 | 2200*850*1650 | 1100 |
FM120GF | 120 | 150 | 216 | R6105IZLD | 6 | 105*120 | 15 | 238 | 2200*850*1650 | 1200 |
FM150GF | 150 | 187.5 | 270 | 6110IZLD | 6 | 110*115 | 18 | 238 | 2400*850*1650 | 1300 |
FM200GF | 200 | 250 | 360 | 6126ZLD | 6 | 126*120 | 28 | 238 | 2600*900*1750 | 1800 |
FM250GF | 250 | 312.5 | 450 | 6126ALD | 6 | 126*125 | 28 | 238 | 2600*900*1750 | 2000 |
FM300GF | 300 | 375 | 540 | 6126IZLD | 6 | 126*130 | 28 | 238 | 2800*900*1800 | 2200 |
1.以上技术参数转速为1500RPM,频率50HZ,额定电压400/230V,功率因数0.8,接线方式为三相四线。 2.发电机可以根据客户需求,选用上海斯坦福、上海马拉松、无锡斯坦福等知名品牌。 3.60HZ发电机组可以根据客户的特殊需要定制。 4.本参数表仅供参考,如有更改恕不另行通知。 | ||||||||||
标准配置 Standard equipment: 发动机 diesel engine 发电机 alternator 散热器 water cooled radiator 工业消音器 、波纹管 industrial silencer and flexible exhaust hose 启动免维护蓄电池及蓄电池 电池连接线 maintenance-free lead-acid starting batteries and battery connect wires 输出断路器 output circuit breaker 智能控制屏 digital control panel 钢式底架 steel base frame | ||||||||||
可选配置 Optional equipment 低噪音静音机箱 Low noise silent case 四轮移动拖车电站 Four-wheel mobile trailer power station 自启动、自转换 开关柜 Self - start, self - conversion switch cabinet 自动并机控制系统 automatic parallel operation control system 电热式水套加热器 electrothermal water jacket heater |
