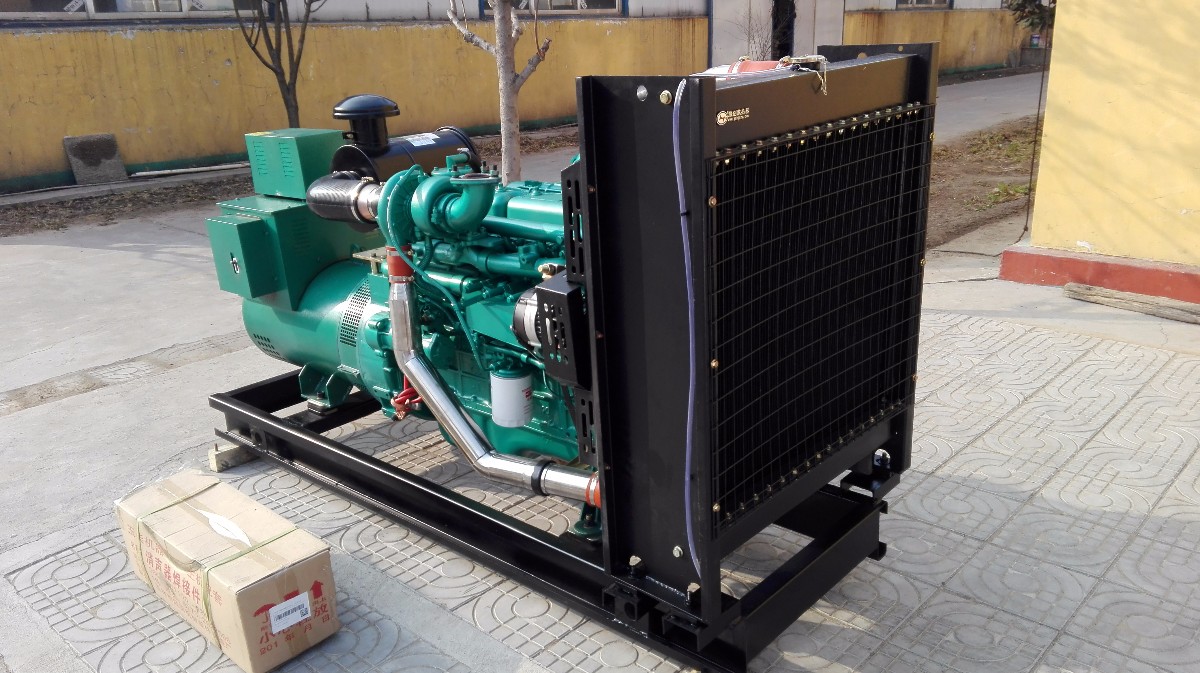

广西玉柴100KW柴油发电机组

广西玉柴发动机采用德国FEV技术所开发的产品。机体、气缸盖采用合金铸铁，强化程度高，采用整体锻钢曲轴，滑动轴承，体积小重量轻，可靠性高，大修期大于12000小时。该机组具有结构紧凑、功率储备大、可靠性高、调速性能好等特点。

Guangxi yuchai engine USES the German FEV technology developed products. The body and cylinder head are made of alloy cast iron, with high degree of reinforcement, with integral forging steel crankshaft, sliding bearing, small volume and light weight, high reliability, and the overhaul period is more than 12000 hours. The unit has the characteristics of compact structure, large power reserve, high reliability and good speed regulation.

机组型号	输出功率KW	输出功率KVA	电流 A	柴油机型号	缸数	缸径*行程 mm	润滑油容量 L	油耗 g/kw.g	机组外形尺寸 L×W×H	机组重量 kg
FM30GF	30	37.5	54	YC4FA40Z-D20	4	96*103	8	215	15007001100	500
FM40GF	40	50	72	YC4FA55Z-D20	4	96*103	8	215	15007001100	550
FM50GF	50	62.5	90	YC4FA75L-D20	4	96*103	12	215	18008001300	750
FM40GF	40	50	72	YC4D60-D21	4	108*115	12	215	17008001300	600
FM50GF	50	62.5	90	YC4D85Z-D20	4	108*115	12	215	18008001300	800
FM60GF	60	75	108	YC4D90Z-D21	4	108*115	15	215	18008001300	850
FM70GF	70	87.5	126	YC4A100Z-D20	4	108*125	16	215	18008001300	900
FM100GF	100	125	180	YC4A140L-D20	4	108*125	16	215	21009001500	800
FM90GF	90	113	162	YC6B135Z-D20	6	108*125	16	215	21009001500	850
FM100GF	100	125	180	YC6B155L-D21	6	108*125	16	215	22009001500	950
FM120GF	120	150	216	YC6B180L-D20	6	108*132	18	215	22009001500	1000
FM140GF	140	175	252	YC6B205L-D20	6	108*125	18	215	22009001550	1200
FM150GF	150	188	270	YC6A230L-D20	6	108*132	16	195	250010001600	1400
FM160GF	160	200	288	YC6A245L-D21	6	108*132	16	195	250010001600	1500
FM220GF	220	275	396	YC6MK350L-D20	6	120*145	25	195	280011001650	2000
FM250GF	250	313	450	YC6MK420L-D20	6	123*145	25	195	300011001700	2200
FM300GF	300	375	540	YC6MJ480L-D20	6	131*145	25	195	320012001700	2600
FM350GF	350	438	630	YC6T550L-D21	6	145*165	50	195	330012001700	3000
FM400GF	400	500	720	YC6T600L-D22	6	145*165	50	195	350015001800	3500
FM450GF	450	563	810	YC6T660L-D20	6	145*165	50	195	350015001800	3600
FM500GF	500	625	900	YC6TD780L-D20	6	145*165	50	195	360016002100	4200
FM600GF	600	750	1080	YC6TD840L-D20	6	200*210	50	195	360016002100	4500
FM650GF	650	813	1170	YC6C1020L-D20	6	200*210	180	195	400015002100	5200
FM700GF	700	875	1260	YC6C1070L-D20	6	200*210	180	195	420016002100	5600
FM800GF	800	1000	1440	YC6C1220L-D20	6	200*210	180	195	460018002500	7600
FM880GF	880	1100	1584	YC6C1320L-D20	6	200*210	180	195	520021502600	8000
FM1000GF	1000	1250	1800	YC12VC1680L-D20	12	200*210	180	195	540021502600	8500
FM1100GF	1100	1375	1980	YC12VC1680L-D20	12	200*210	180	195	540021502600	8800
FM1200GF	1200	1500	2160	YC12VC2070L-D20	12	200*210	180	195	540021502600	9000
FM1320GF	1320	1650	2376	YC12VC2070L-D20	12	200*210	180	195	540021502600	10000
FM1500GF	1500	1875	2700	YC12VC2070L-D20	12	200*210	180	195	560023002600	12000
FM1600GF	1600	2000	2880	YC12VC2510L-D20	12	200*210	180	195	560023002600	12500

1.以上技术参数转速为1500RPM，频率50HZ，额定电压400/230V，功率因数0.8，接线方式为三相四线。 2.发电机可以根据客户需求，选用上海斯坦福、上海马拉松、无锡斯坦福等知名品牌。 3.60HZ发电机组可以根据客户的特殊需要定制。 4.本参数表仅供参考，如有更改恕不另行通知。
标准配置 Standard equipment：发动机 diesel engine 发电机 alternator 散热器 water cooled radiator 工业消音器、波纹管 industrial silencer and flexible exhaust hose 启动免维护蓄电池及蓄电池电池连接线 maintenance-free lead-acid starting batteries and battery connect wires 输出断路器 output circuit breaker 智能控制屏 digital control panel 钢式底架 steel base frame
可选配置 Optional equipment 低噪音静音机箱 Low noise silent case 四轮移动拖车电站 Four-wheel mobile trailer power station 自启动、自转换开关柜 Self - start, self - conversion switch cabinet 自动并机控制系统 automatic parallel operation control system 电热式水套加热器 electrothermal water jacket heater
