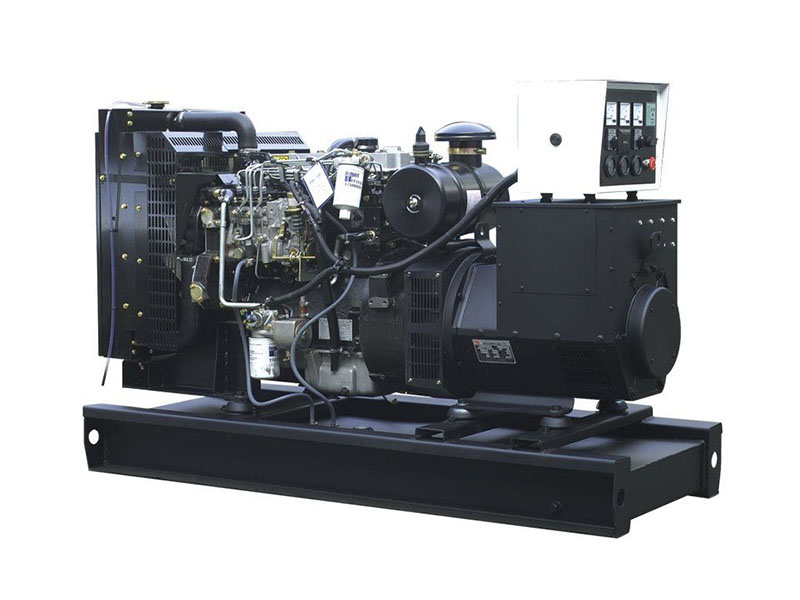

帕金斯100KW柴油发电机组
英国帕金斯(又称劳斯莱斯)发动机有限公司是世界最大的发动机制造商之一,创立于1932年,年产量近40万台发动机。1998年,帕金斯被美国克莱斯勒公司控股,成为卡特集团一成员。帕金斯公司较晚进入中国发动机市场,但自九五年以飞快的速度为广大客户所接受,并迅速占领一部分市场份额,在发电机组市场上取得了令人瞩目的成就。帕金斯柴油发电机组规格全,品种多、结构紧凑、性能稳定可靠、一般维护保养易行、废气排放污染低、达到欧三环保排放标准。 Britain's perkins (also known as Rolls-Royce) engine limited, one of the world's largest engine manufacturers, was founded in 1932 with an annual output of nearly 400, 000 engines. In 1998, perkins became a member of the carter group, controlled by Chrysler. Perkins company later to enter the Chinese market engine, but since 95, accepted by the masses of customers at fast speed, and quickly occupied part of market share, in the generator set market made remarkable achievements. The parkins diesel generator set is full of specifications, with a variety of varieties, compact structure, reliable performance, general maintenance and maintenance, low emission pollution, and meet the environmental emission standards. |
机组型号 | 输出功率KW | 输出功率KVA | 电流A | 柴油机型号 | 缸数 | 缸径*行程mm | 润滑油容量L | 油耗g/kw.g | 机组外形尺寸L×W×H | 机组重量kg |
FM7GF | 7 | 8.75 | 12.6 | 4.3A-11G1 | 3 | 77*87 | 4.9 | 248 | 1200*700*1100 | 300 |
FM8GF | 8 | 10 | 14.4 | 4.3D-11G | 3 | 77*81 | 4.9 | 252 | 1200*700*1100 | 300 |
FM10GF | 10 | 12.5 | 18 | 4.3D-15G | 3 | 84*90 | 6 | 264 | 1250*700*1100 | 350 |
FM11GF | 11 | 13.75 | 19.8 | 4.3A-15G1 | 3 | 84*90 | 6.5 | 247 | 1250*700*1100 | 350 |
FM12GF | 12 | 15 | 21.6 | 4.3A-15G2 | 3 | 84*90 | 6 | 264 | 1250*700*1100 | 350 |
FM16GF | 16 | 20 | 28.8 | 4.4A-22G1 | 4 | 84*100 | 10.6 | 237 | 1500*710*1300 | 500 |
FM16GF | 16 | 20 | 28.8 | 404D-22G | 4 | 84*100 | 11.2 | 245 | 1500*710*1300 | 500 |
FM24GF | 24 | 30 | 43.2 | 1103A-33G | 3 | 105*127 | 8.3 | 211 | 1770*720*1300 | 800 |
FM36GF | 36 | 45 | 64.8 | 1103A-33TG1 | 3 | 105*127 | 8.3 | 211 | 1800*720*1380 | 920 |
FM50GF | 50 | 62.5 | 90 | 1103A-33TG2 | 3 | 105*127 | 8.3 | 215 | 1800*720*1380 | 1050 |
FM50GF | 50 | 62.5 | 90 | 1104A-44TG1 | 4 | 105*127 | 8.3 | 208 | 2250*750*1600 | 1100 |
FM64GF | 64 | 80 | 115.2 | 1104A-44TG2 | 4 | 105*127 | 8.3 | 208 | 2300*750*1600 | 1150 |
FM64GF | 64 | 80 | 115.2 | 1104C-44TAG1 | 4 | 105*127 | 8.3 | 205 | 2480*760*1600 | 1250 |
FM64GF | 64 | 80 | 115.2 | 1104D-E44TAG1 | 4 | 105*127 | 8.3 | 211 | 2480*760*1600 | 1250 |
FM80GF | 80 | 100 | 144 | 1104C-44TAG2 | 4 | 100*127 | 8.3 | 208 | 2480*760*1600 | 1250 |
FM80GF | 80 | 100 | 144 | 1104D-E44TAG2 | 4 | 100*127 | 8.3 | 208 | 2480*760*1600 | 1250 |
FM110GF | 110 | 137.5 | 198 | 1106A-70TG1 | 6 | 100*120 | 8.3 | 199 | 2550*850*1700 | 1350 |
FM120GF | 120 | 150 | 216 | 1106A-70TAG2 | 6 | 105*135 | 19 | 208 | 2650*850*1700 | 1450 |
FM140GF | 140 | 175 | 252 | 1106A-70TAG3 | 6 | 105*135 | 19 | 206 | 2700*900*1700 | 1700 |
FM160GF | 160 | 200 | 288 | 1106A-70TAG4 | 6 | 105*135 | 19 | 220 | 3000*1000*1700 | 2100 |
FM160GF | 160 | 200 | 288 | 1506A-E88TAG1 | 6 | 112*149 | 41 | 200 | 3000*1000*1700 | 2100 |
FM180GF | 180 | 225 | 324 | 1506A-E88TAG2 | 6 | 112*149 | 41 | 200 | 3000*1000*1700 | 2100 |
FM200GF | 200 | 250 | 360 | 1506A-E88TAG3 | 6 | 112*149 | 41 | 200 | 3100*1000*1700 | 2150 |
FM220GF | 220 | 275 | 396 | 1506A-E88TAG4 | 6 | 112*149 | 41 | 198 | 3100*1000*1700 | 2150 |
FM240GF | 240 | 300 | 432 | 1506A-E88TAG5 | 6 | 112*149 | 41 | 198 | 3100*1000*1700 | 2150 |
FM280GF | 280 | 350 | 504 | 2206C-E13TAG2 | 6 | 130*157 | 40 | 209 | 3600*1200*2000 | 3200 |
FM320GF | 320 | 400 | 576 | 2206C-E13TAG3 | 6 | 130*157 | 40 | 206 | 3650*1200*2000 | 3300 |
FM360GF | 360 | 450 | 648 | 2506C-E15TAG1 | 6 | 137*171 | 62 | 211 | 4000*1200*2100 | 3700 |
FM400GF | 400 | 500 | 720 | 2506C-E15TAG2 | 6 | 131*171 | 62 | 211 | 4050*1200*2100 | 3760 |
FM480GF | 480 | 600 | 864 | 2806C-E18TAG1A | 6 | 145*183 | 62 | 216 | 4100*1600*2200 | 4600 |
FM520GF | 520 | 650 | 936 | 2806A-E18TAG2 | 6 | 145*183 | 62 | 202 | 4200*1600*2200 | 4800 |
FM600GF | 600 | 750 | 1080 | 4006-23TAG2A | 6 | 160*190 | 113 | 209 | 1500*1800*2300 | 5500 |
FM640GF | 640 | 800 | 1152 | 4006-23TAG3A | 6 | 160*190 | 113 | 209 | 4600*1800*2300 | 6000 |
FM720GF | 720 | 900 | 1296 | 4008TAG1A | 8 | 160*190 | 153 | 206 | 4800*2100*2500 | 7700 |
FM800GF | 800 | 1000 | 1440 | 4008TAG2A | 8 | 160*190 | 153 | 206 | 4900*2100*2500 | 8000 |
FM900GF | 900 | 1125 | 1620 | 4008TAG2 | 8 | 160*190 | 153 | 206 | 4900*2100*2500 | 8000 |
FM1000GF | 1000 | 1250 | 1800 | 4012-46TWG2A | 12 | 160*190 | 177 | 212 | 5300*2200*2600 | 10000 |
FM1100GF | 1100 | 1375 | 1980 | 4012-46TWG3A | 12 | 160*190 | 159 | 212 | 5300*2200*2600 | 10000 |
FM1200GF | 1200 | 1500 | 2160 | 4012-46TAG2A | 12 | 160*190 | 177 | 212 | 5400*2200*2600 | 11000 |
FM1360GF | 1360 | 1700 | 2448 | 4012-46TAG3A | 12 | 160*190 | 177 | 212 | 5500*2200*2600 | 12000 |
FM1480GF | 1480 | 1850 | 2664 | 4016TAG1A | 16 | 160*190 | 237 | 205 | 5700*2800*3100 | 13500 |
FM1480GF | 1480 | 1850 | 2664 | 4016-61TRG1 | 16 | 160*190 | 237 | 201 | 5700*2800*3100 | 11500 |
FM1600GF | 1600 | 2000 | 2880 | 4016TAG2A | 16 | 160*190 | 237 | 208 | 5800*2800*3100 | 14000 |
FM1600GF | 1600 | 2000 | 2880 | 4016-61TRG2 | 16 | 160*190 | 237 | 208 | 5800*2800*3100 | 14000 |
FM1800GF | 1800 | 2250 | 3240 | 4016-61TRG3 | 16 | 160*190 | 237 | 205 | 5900*2800*3100 | 15700 |
1.以上技术参数转速为1500RPM,频率50HZ,额定电压400/230V,功率因数0.8,接线方式为三相四线。 2.发电机可以根据客户需求,选用上海斯坦福、上海马拉松、无锡斯坦福等知名品牌。 3.60HZ发电机组可以根据客户的特殊需要定制。 4.本参数表仅供参考,如有更改恕不另行通知。 | ||||||||||
标准配置 Standard equipment: 发动机 diesel engine 发电机 alternator 散热器 water cooled radiator 工业消音器 、波纹管 industrial silencer and flexible exhaust hose 启动免维护蓄电池及蓄电池 电池连接线 maintenance-free lead-acid starting batteries and battery connect wires 输出断路器 output circuit breaker 智能控制屏 digital control panel 钢式底架 steel base frame | ||||||||||
可选配置 Optional equipment 低噪音静音机箱 Low noise silent case 四轮移动拖车电站 Four-wheel mobile trailer power station 自启动、自转换 开关柜 Self - start, self - conversion switch cabinet 自动并机控制系统 automatic parallel operation control system 电热式水套加热器 electrothermal water jacket heater |
