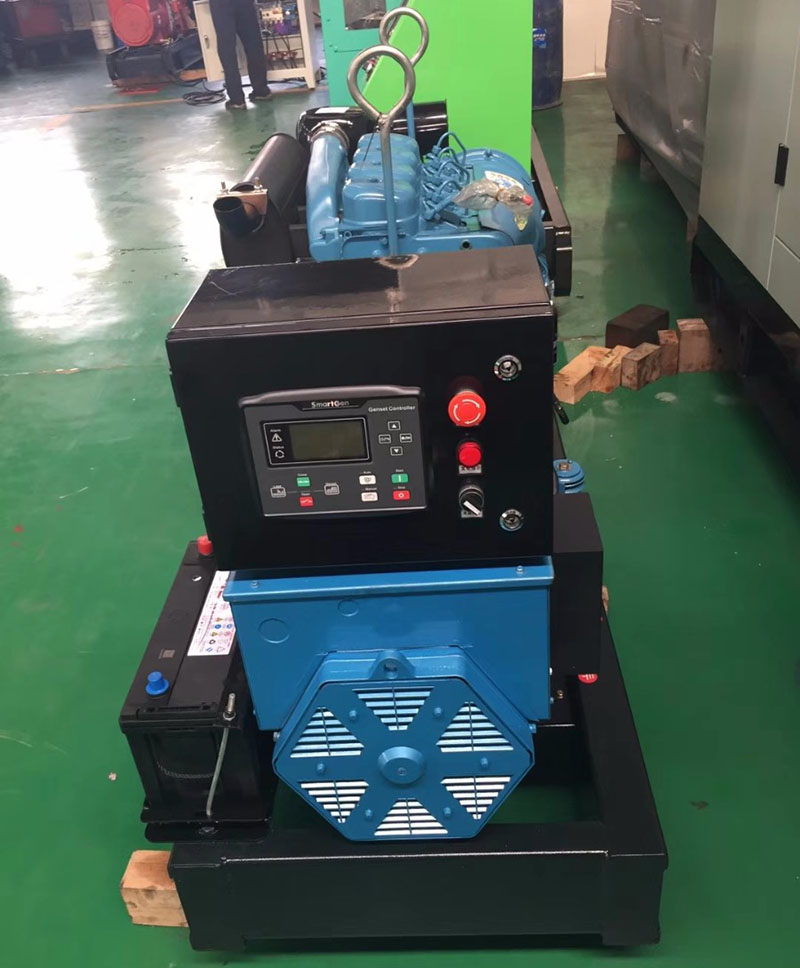

120KW风冷系列柴油发电机组
北内柴油机公司遵循着“高品质、北内造、全球共享”的企业营销理念,利用德国道依茨公司912/913风冷机的先进技术和性能,先后研发了B/F2L912、BF6L913C等机型的柴油机,实现了产品全系列生产,形成柴油机功率从12kw~141kw。 风冷柴油发电机的特点: 结构设计紧凑、使用维护方便 不存在漏水、冻裂和形成水垢导致油机过热而出现故障. 环境适应性强,可靠性高, 机组热状态稳定,受环境影响小,能在-40℃~+50℃温度范围内可靠地工作。适用于寒冷、酷热、沙漠、森林、高原、和缺水地区。 工作平稳、噪音低、震动小、低温启动性能好 采用了优化设计的减震机体、先进的消声和平衡技术,使噪声和震动均比水冷机低。发动机内置空气加热器,使发动机低温启动性能卓越。 废气排放少,运行费用低 排烟度小于1个Bosch单位,油耗低。 "Beinei diesel engine company follow the" high quality, beinei made, global sharing "of the enterprise marketing idea, using the German way in accordance with the company 912/913 air cooling machine, advanced technology and performance, has developed the B/F2L912, BF6L913C type diesel engine, realized the full series of production, product form from 12 kw to 141 kw diesel engine power. Features of air-cooled diesel generators: Compact structure design, easy maintenance There is no leakage, frostbite and scale formation leading to oil engine overheating and failure. Strong environmental adaptability, high reliability, The thermal stable, affected by the environment is small, can in - 40 ℃ ~ + 50 ℃ temperature within the scope of work in a reliable way. Suitable for cold, hot, desert, forest, plateau, and water shortage areas. Stable operation, low noise, low vibration, low temperature start-up performance The optimized shock absorber, advanced noise abatement and balance technology are adopted to make the noise and vibration lower than the water cooler. The engine has a built-in air heater, which enables the engine to start at low temperature with excellent performance. Low exhaust emissions, low operating costs Smoke emission is less than 1 Bosch unit, low fuel consumption." |
机组型号 | 输出功率KW | 输出功率KVA | 电流A | 柴油机型号 | 缸数 | 缸径*行程mm | 润滑油容量L | 油耗g/kw.g | 机组外形尺寸L×W×H | 机组重量kg |
FM12KW | 12 | 15 | 21.6 | F2L912 | 2 | 100*120 | 6 | 200 | 1400*700*1000 | 460 |
FM20KW | 20 | 25 | 36 | F3L912 | 3 | 100*120 | 6 | 200 | 1500*700*1000 | 520 |
FM30KW | 30 | 37.5 | 54 | F4L912 | 4 | 100*120 | 10 | 200 | 1500*700*1100 | 600 |
FM30KW | 30 | 37.5 | 54 | F4L913 | 4 | 100*120 | 10 | 200 | 1500*700*1200 | 640 |
FM40KW | 40 | 50 | 72 | F4L912T | 4 | 100*120 | 10 | 200 | 1500*700*1350 | 680 |
FM45KW | 45 | 56.25 | 81 | F6L912 | 6 | 100*120 | 15 | 205 | 2000*900*1400 | 800 |
FM50KW | 50 | 62.5 | 90 | F6L913 | 6 | 102*125 | 15 | 205 | 2000*900*1400 | 850 |
FM55KW | 55 | 68.75 | 99 | F6L912T | 6 | 100*120 | 15 | 205 | 2000*900*1400 | 900 |
FM50KW | 50 | 62.5 | 90 | BF4L913电调 | 4 | 102*125 | 12 | 205 | 2200*1000*1550 | 720 |
FM75KW | 75 | 93.75 | 135 | BF6L913电调 | 6 | 102*125 | 18 | 205 | 2200*1000*1600 | 1050 |
FM100KW | 100 | 125 | 180 | BF6L913C电调 | 6 | 102*125 | 18 | 205 | 2200*1000*1650 | 1150 |
备注:风冷柴油机为空气直接强迫冷却,无水泵、水管、水箱等部件,缸体和缸盖为分体式,无冷却水夹层。结构简单、体积小、重量轻。 |
1.以上技术参数转速为1500RPM,频率50HZ,额定电压400/230V,功率因数0.8,接线方式为三相四线。 2.发电机可以根据客户需求,选用上海斯坦福、上海马拉松、无锡斯坦福等知名品牌。 3.60HZ发电机组可以根据客户的特殊需要定制。 4.本参数表仅供参考,如有更改恕不另行通知。 | ||||||||||
标准配置 Standard equipment: 发动机 diesel engine 发电机 alternator 散热器 water cooled radiator 工业消音器 、波纹管 industrial silencer and flexible exhaust hose 启动免维护蓄电池及蓄电池 电池连接线 maintenance-free lead-acid starting batteries and battery connect wires 输出断路器 output circuit breaker 智能控制屏 digital control panel 钢式底架 steel base frame | ||||||||||
可选配置 Optional equipment 低噪音静音机箱 Low noise silent case 四轮移动拖车电站 Four-wheel mobile trailer power station 自启动、自转换 开关柜 Self - start, self - conversion switch cabinet 自动并机控制系统 automatic parallel operation control system 电热式水套加热器 electrothermal water jacket heater |
