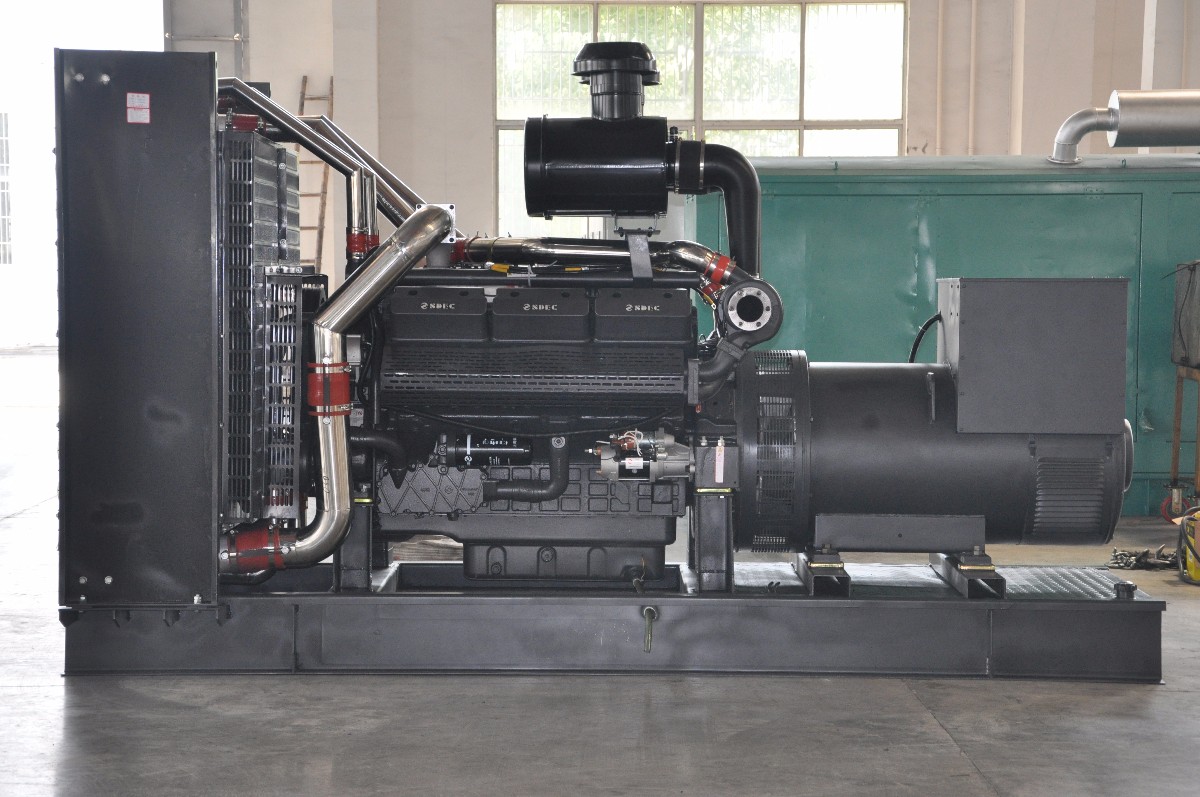

上柴股份500KW柴油发电机组


上柴股份600KW柴油发电机组

上柴股份600KW柴油发电机组

该系列发电机组采用上海柴油机股份有限公司生产H系列、D系列、E系列、G系列、W系列电站柴油机作为动力,配置名牌发电机。机组具有调压精度高、动态性能好、电压波形畸变小、效率高、工作可靠、使用寿命长、经济性能好等特点。机组配置全套免维护蓄电池启动系统,用户只需注入机油和防冻液、接通开关就可以启动机组,输出电力,提高了使用的便捷性。

This series of generator sets are made by Shanghai diesel engine co., LTD., which produces series H series, D series, E series, G series and W series power station diesel engines as power, and equipped with famous brand generator. The unit has the characteristics of high pressure regulating precision, good dynamic performance, low voltage waveform distortion, high efficiency, reliable work, long service life and good economic performance. The unit is equipped with a full set of no-maintenance battery startup system. The user can start the unit with the injection of oil and anti-freeze liquid and switch on the switch, so as to output power and improve the convenience of use.

机组型号输出功率KW输出功率KVA电流A柴油机型号缸数缸径*行程mm润滑油容量L油耗g/kw.g机组外形尺寸L×W×H机组重量kg
FM50GF5062.590SC4H95D24135*140252322200*800*13801500
FM75GF7593.75135SC4H15D24135*150252252300*900*13001600
FM100GF100125180SC4H160D24105*124131932500*900*15002000
FM120GF120150216SC4H180D24135*150282262600*900*15502250
FM150GF150187.5270SC7H230D26105*12417.51992600*900*15502300
FM170GF170212.5306SC7H250D26114*135191982600*900*16002400
FM180GF180225324SC8D280D26114*144191982600*1050*16002400
FM200GF200250360SC9D310D26114*144191982600*1050*16002600
FM220GF220275396SC9D340D26135*150332253000*1280*16502650
FM250GF250312.5450SC13G355D26135*150332253000*1280*16502800
FM250GF250312.5450SC13G420D26135*150332253000*1280*16502800
FM300GF300375540SC12E460D26128*153371923000*1280*17003450
FM320GF320400576SC15G500D26135*165332003200*1350*18503500
FM350GF350437.5630SC15G500D26135*165332023200*1350*19003500
FM400GF400500720SC25G610D212135*150652023400*1500*19504200
FM450GF450562.5810SD25G690D212135*155652023500*1500*19504500
FM500GF500625900SC27G755D212135*155652023500*1500*20004800
FM550GF550687.5990SC27G830D212135*155652023600*1600*20005000
FM600GF6007501080SC27G900D212135*155652023650*1600*20005050
FM660GF6608251188SC33W990D26180*215752054400*1700*21505200
FM800GF80010001440SC33W1150D26180*215752054800*1800*22506500
1.以上技术参数转速为1500RPM,频率50HZ,额定电压400/230V,功率因数0.8,接线方式为三相四线。
2.发电机可以根据客户需求,选用上海斯坦福、上海马拉松、无锡斯坦福等知名品牌。
3.60HZ发电机组可以根据客户的特殊需要定制。
4.本参数表仅供参考,如有更改恕不另行通知。
标准配置 Standard equipment:
发动机 diesel engine
发电机 alternator
散热器 water cooled radiator
工业消音器 、波纹管 industrial silencer and flexible exhaust hose
启动免维护蓄电池及蓄电池
电池连接线 maintenance-free lead-acid starting batteries and battery connect wires
输出断路器 output circuit breaker
智能控制屏 digital control panel
钢式底架 steel base frame
可选配置 Optional equipment
低噪音静音机箱 Low noise silent case
四轮移动拖车电站 Four-wheel mobile trailer power station
自启动、自转换
开关柜 Self - start, self - conversion switch cabinet
自动并机控制系统 automatic parallel operation control system
电热式水套加热器 electrothermal water jacket heater
