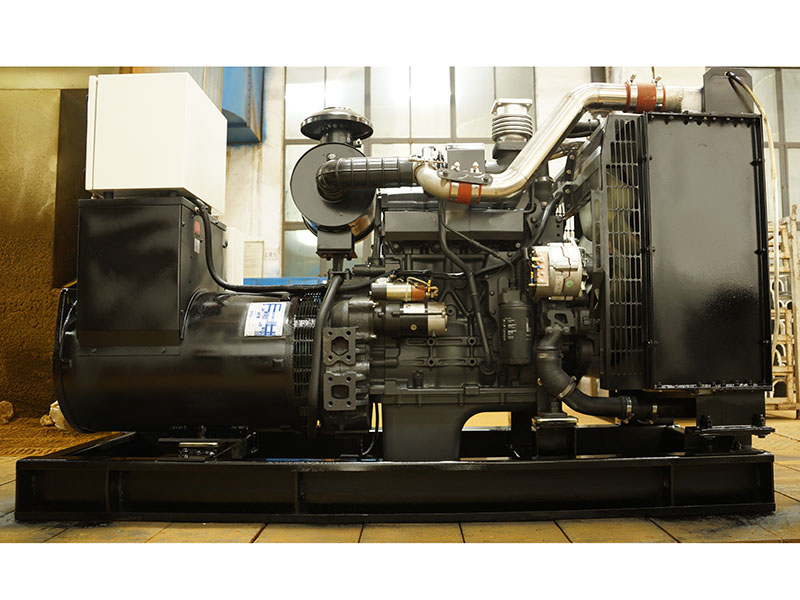

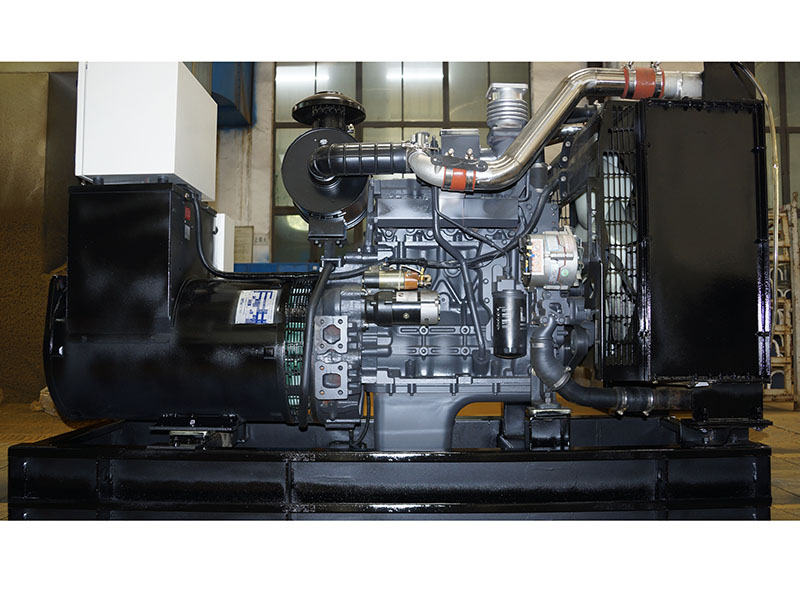

上柴股份100KW柴油发电机组
该系列发电机组采用上海柴油机股份有限公司生产H系列、D系列、E系列、G系列、W系列电站柴油机作为动力,配置发电机。机组具有调压精度高、动态性能好、电压波形畸变小、效率高、工作可靠、使用寿命长、经济性能好等特点。机组配置全套免维护蓄电池启动系统,用户只需注入机油和防冻液、接通开关就可以启动机组,输出电力,提高了使用的便捷性。 This series of generator sets are made by Shanghai diesel engine co., LTD., which produces series H series, D series, E series, G series and W series power station diesel engines as power, and equipped with famous brand generator. The unit has the characteristics of high pressure regulating precision, good dynamic performance, low voltage waveform distortion, high efficiency, reliable work, long service life and good economic performance. The unit is equipped with a full set of no-maintenance battery startup system. The user can start the unit with the injection of oil and anti-freeze liquid and switch on the switch, so as to output power and improve the convenience of use. |
机组型号 | 输出功率KW | 输出功率KVA | 电流A | 柴油机型号 | 缸数 | 缸径*行程mm | 润滑油容量L | 油耗g/kw.g | 机组外形尺寸L×W×H | 机组重量kg |
FM50GF | 50 | 62.5 | 90 | SC4H95D2 | 4 | 135*140 | 25 | 232 | 2200*800*1380 | 1500 |
FM75GF | 75 | 93.75 | 135 | SC4H15D2 | 4 | 135*150 | 25 | 225 | 2300*900*1300 | 1600 |
FM100GF | 100 | 125 | 180 | SC4H160D2 | 4 | 105*124 | 13 | 193 | 2500*900*1500 | 2000 |
FM120GF | 120 | 150 | 216 | SC4H180D2 | 4 | 135*150 | 28 | 226 | 2600*900*1550 | 2250 |
FM150GF | 150 | 187.5 | 270 | SC7H230D2 | 6 | 105*124 | 17.5 | 199 | 2600*900*1550 | 2300 |
FM170GF | 170 | 212.5 | 306 | SC7H250D2 | 6 | 114*135 | 19 | 198 | 2600*900*1600 | 2400 |
FM180GF | 180 | 225 | 324 | SC8D280D2 | 6 | 114*144 | 19 | 198 | 2600*1050*1600 | 2400 |
FM200GF | 200 | 250 | 360 | SC9D310D2 | 6 | 114*144 | 19 | 198 | 2600*1050*1600 | 2600 |
FM220GF | 220 | 275 | 396 | SC9D340D2 | 6 | 135*150 | 33 | 225 | 3000*1280*1650 | 2650 |
FM250GF | 250 | 312.5 | 450 | SC13G355D2 | 6 | 135*150 | 33 | 225 | 3000*1280*1650 | 2800 |
FM250GF | 250 | 312.5 | 450 | SC13G420D2 | 6 | 135*150 | 33 | 225 | 3000*1280*1650 | 2800 |
FM300GF | 300 | 375 | 540 | SC12E460D2 | 6 | 128*153 | 37 | 192 | 3000*1280*1700 | 3450 |
FM320GF | 320 | 400 | 576 | SC15G500D2 | 6 | 135*165 | 33 | 200 | 3200*1350*1850 | 3500 |
FM350GF | 350 | 437.5 | 630 | SC15G500D2 | 6 | 135*165 | 33 | 202 | 3200*1350*1900 | 3500 |
FM400GF | 400 | 500 | 720 | SC25G610D2 | 12 | 135*150 | 65 | 202 | 3400*1500*1950 | 4200 |
FM450GF | 450 | 562.5 | 810 | SD25G690D2 | 12 | 135*155 | 65 | 202 | 3500*1500*1950 | 4500 |
FM500GF | 500 | 625 | 900 | SC27G755D2 | 12 | 135*155 | 65 | 202 | 3500*1500*2000 | 4800 |
FM550GF | 550 | 687.5 | 990 | SC27G830D2 | 12 | 135*155 | 65 | 202 | 3600*1600*2000 | 5000 |
FM600GF | 600 | 750 | 1080 | SC27G900D2 | 12 | 135*155 | 65 | 202 | 3650*1600*2000 | 5050 |
FM660GF | 660 | 825 | 1188 | SC33W990D2 | 6 | 180*215 | 75 | 205 | 4400*1700*2150 | 5200 |
FM800GF | 800 | 1000 | 1440 | SC33W1150D2 | 6 | 180*215 | 75 | 205 | 4800*1800*2250 | 6500 |
1.以上技术参数转速为1500RPM,频率50HZ,额定电压400/230V,功率因数0.8,接线方式为三相四线。 2.发电机可以根据客户需求,选用上海斯坦福、上海马拉松、无锡斯坦福等知名品牌。 3.60HZ发电机组可以根据客户的特殊需要定制。 4.本参数表仅供参考,如有更改恕不另行通知。 | ||||||||||
标准配置 Standard equipment: 发动机 diesel engine 发电机 alternator 散热器 water cooled radiator 工业消音器 、波纹管 industrial silencer and flexible exhaust hose 启动免维护蓄电池及蓄电池 电池连接线 maintenance-free lead-acid starting batteries and battery connect wires 输出断路器 output circuit breaker 智能控制屏 digital control panel 钢式底架 steel base frame | ||||||||||
可选配置 Optional equipment 低噪音静音机箱 Low noise silent case 四轮移动拖车电站 Four-wheel mobile trailer power station 自启动、自转换 开关柜 Self - start, self - conversion switch cabinet 自动并机控制系统 automatic parallel operation control system 电热式水套加热器 electrothermal water jacket heater |
